MOBO TRITON / TRITON PRO ASSEMBLY INSTRUCTIONS

Steps for assembling Mobo Triton & Triton Pro

  • Step A:

    • Remove screws from back of front wheel frame.

  • Step B:

    • Attach rear frame and tighten screw.

  • Step C:

    • Remove screw from wheel axle.

  • Step D:

    • Remove rubber hubs from wheel.
    • Insert wheel into wheel axle.

  • Step E:

    • Fasten screw.

  • Step F:

    • Replace rubber hub.
    • Repeat on second side.

  • Step G:

    • Align steering arm to center of frame.

  • Step H:

    • Fasten steering handle screw.

  • Step I:

    • Align second steering arm to frame and fasten steering handle screw.

  • Step J:

    • Remove screw from linkage steering.

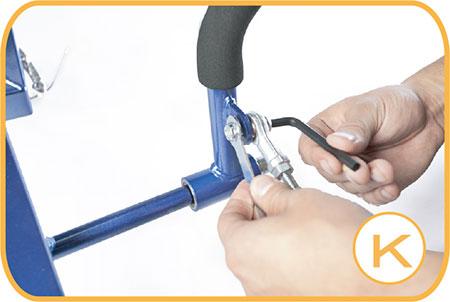

  • Step K:

    • Align linkage steering and fasten screw.

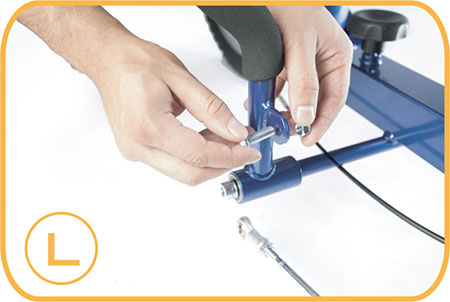

  • Step L:

    • Remove screw from linkage steering on second side.

  • Step M:

    • Align linkage steering and fasten screw.

  • Step N:

    • Align saddle with seat cushion.

  • Step O:

    • Align saddle with frame.
    • Insert screw and nuts.

  • Step P:

    • Tighten nut.

  • Step Q:

    • Remove chrome cap from rear wheel frame.

  • Step R:

    • Place rear fender and tighten chrome cap.
    • Repeat on other side.

  • Step S:

    • Unfold pedals.

  • Step T:

    • Loosen knob to adjust length.
    • Tighten knob.

  • Step U:

    • Remove screw from reflector.
    • Place over center saddle and tighten.
